Product Insights

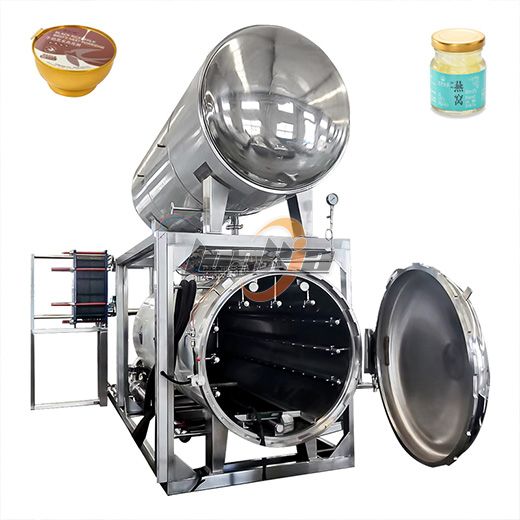

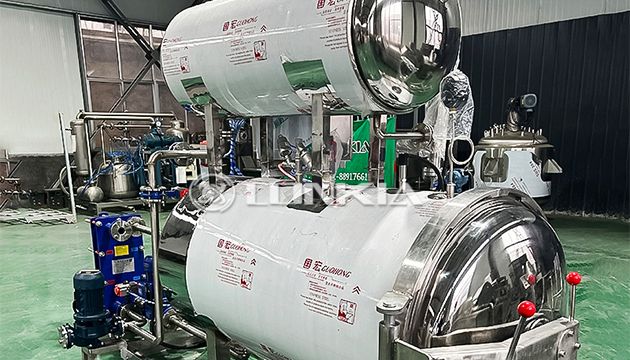

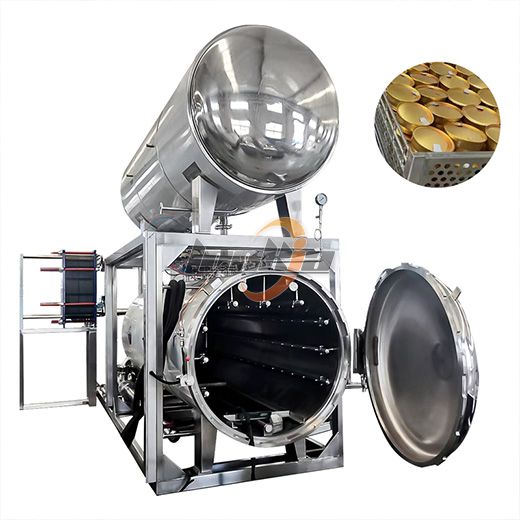

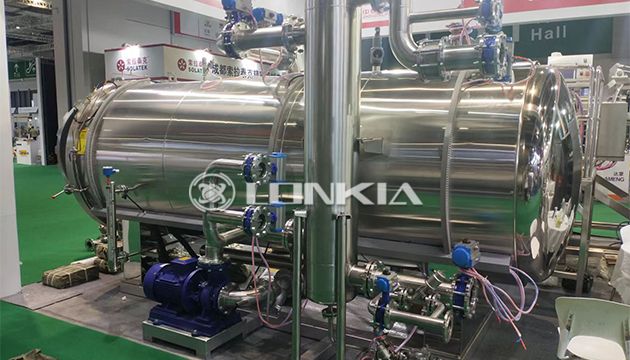

The Water Cascade Retort (Sterilizer) is different from the water bath type. The spray type is mainly suitable for product packaging that cannot be immersed in high temperature water for a long time. High temperature water heats and sterilizes the product by spraying.
Applicable to:
Glass containers: glass bottles (bird's nest, meat sauce, canned food, etc.);
Metal containers: tinplate (canned fruit, canned fish, pet food, etc.), aluminum cans: (flavored beverages, etc.);
Soft bags: high temperature cooking bags, aluminum foil bags, vacuum bags, transparent bags, plastic containers and other packaging products for sterilization.
-
Boxed Food
-
Boxed Food
-
Canned
-
Bottled
Product Video
Gallery
Prouduct Features

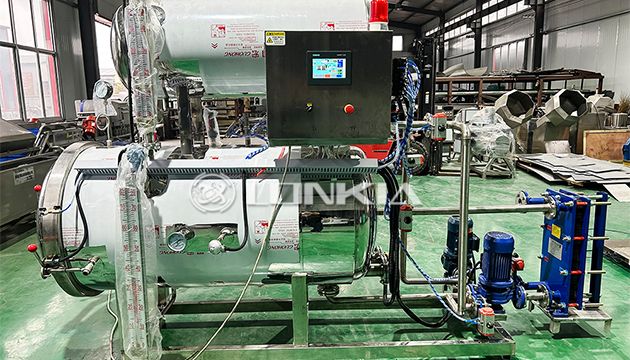

Fully automated control
Silicone pad is inflated to seal the pot door during operation.
Electric heating tube can be configured to provide energy for sterilization.
Siemens PLC precisely controls the solenoid valve.
Technical Specifications
Model | Overall dimensions | volume | power | voltage |
LK-SJ700 | 2100*1200*2000mm | 0.6m³ | 27KW | 380V/220V |
LK-SJ900 | 3400*1500*2630mm | 1.36m³ | 60KW | 380V/220V |
LK-SJ1000 | 3600*1700*2900mm | 2.02m³ | 80KW | 380V/220V |
LK-SJ1200 | 5620*1900*3140mm | 4.8m³ | 100KW | 380V/220V |
Note: Technical specifications may change without notice due to ongoing technological advancements.
